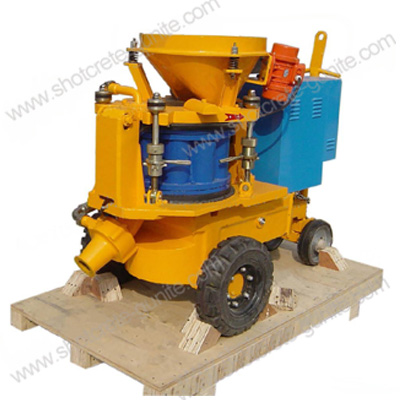

The DY-PZ-09 is a large-size shotcrete machine for the processing of dry or damp mix. Thanks to its compact design and mobility, the machine can be used in which the space is at a premium e.g. in mines or galleries. it is widely employed in mining, tunnel lining, channel lining, culvert, subway, seismic rehab, specialty projects, hydropower engineering, underground excavation engineering etc. The DY-PZ-9 has advantages of advanced technology, steady quality, easy operation, high strength and durability, the machines can be driven by electric motor, air motor or diesel.

Technical Date

Name
DY-PZ-9

Output
9m3/hour

Max. Conveying Distance
200m for horizontal; 80m for vertical

Water cement ratio
below 0.4

Max. aggregate size
20mm

Hose inner size
 φ64mm

Operating air pressure
9~10m3/min

Engine type
Diesel engine

Basic chassis
Type, skid or railway wheel
